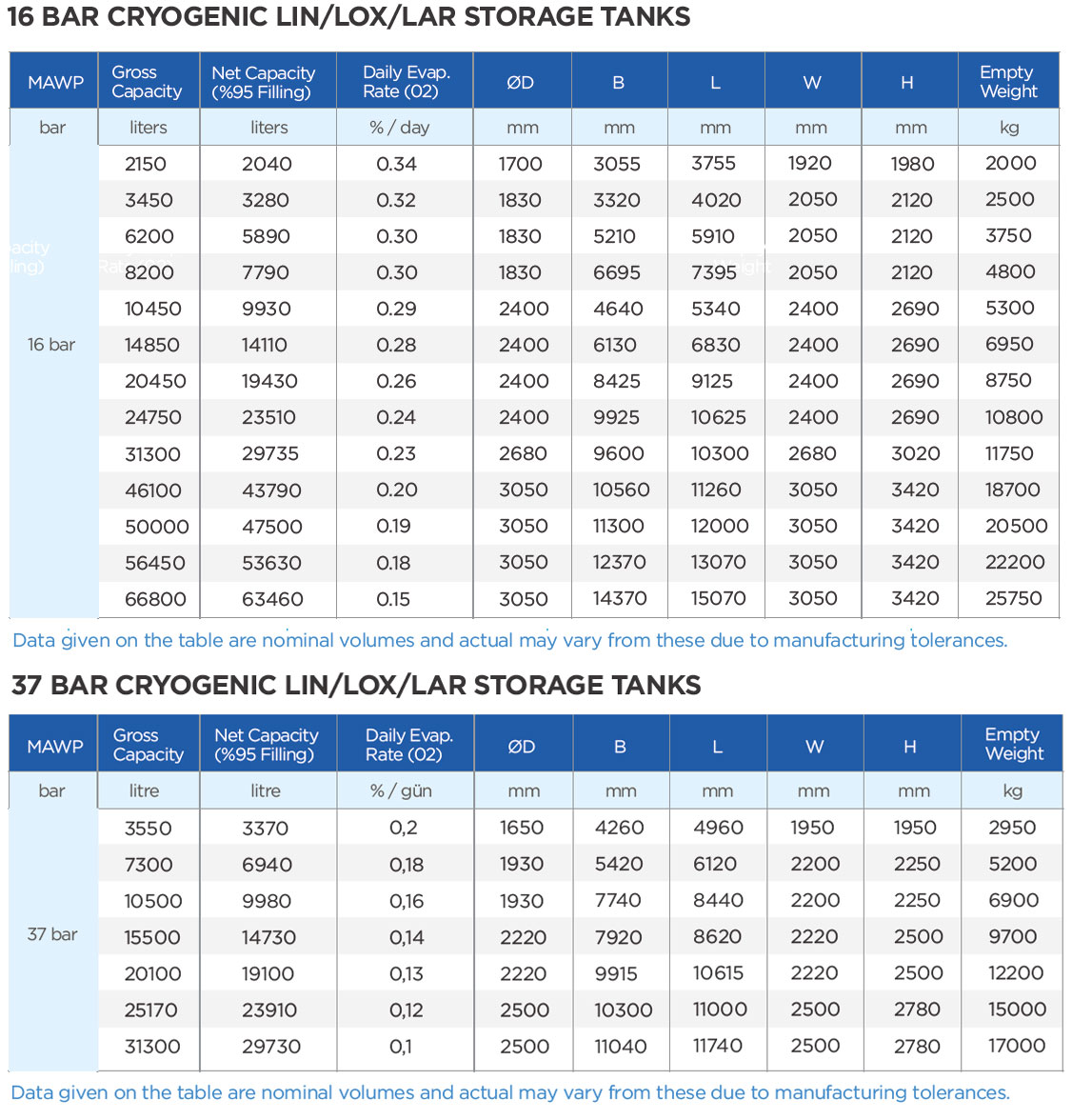

Cryogenic stationary tanks are designed for the long-term storage of cryogenic liquefied gases under pressure. The inner tanks of medium and high pressure liquid gas storage tanks are made of cold-drawn austenitic stainless steel. These cryogenic tanks, which can be manufactured vertically and horizontally, can be used for LIN, LOX, LAR, LNG, CO2, and N2O.
| Design Code |
EN 13458 – PED 2018/68/EU |
| Operating Pressure |
5 – 39 Bar |
| Design Temperature |
-196°c / 50°c |
| Ambient Temperature |
-50°c / 55°c |
| Material - Inner Tank |
Stainless Steel (EN 10028-7) |
| Material - Outer Tank |
Carbon Steel (EN 10025/EN 10028-3) |
| Insulation |
Vacuum + Perlite |
